[LA] Rank: Matrix의 속성

2024. 7. 8. 13:04·.../Linear Algebra
728x90
728x90

Definition: Rank ◁ matrix 속성

The rank of a matrix $A$, denoted by rank $A$,
is the dimension of the column space of $A$.

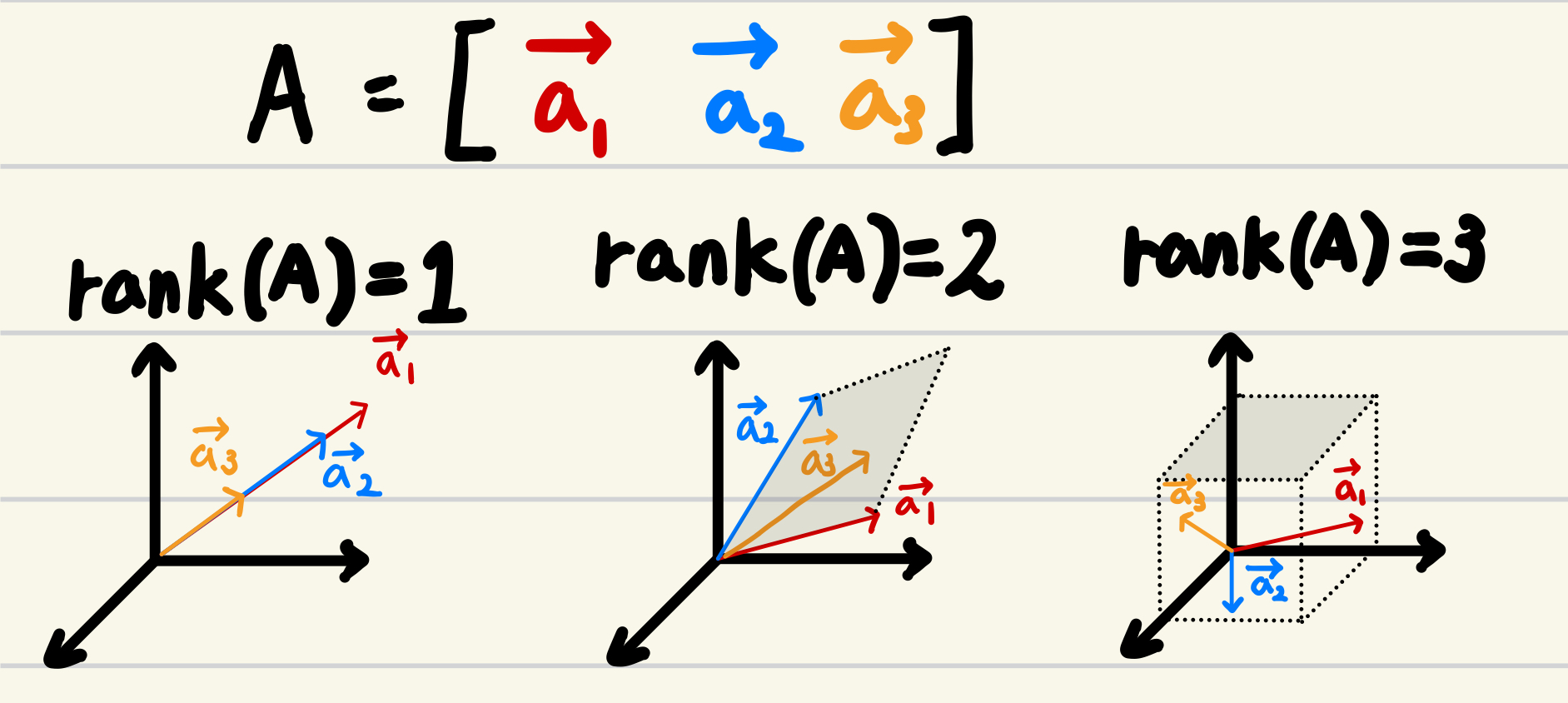

  • Matrix를 이루는 Column Vectors에서 Linearly Independent 인 것들의 수를 의미

Row Space의 Dimension 의 경우를 강조하여 Row Rank라고 부르고,

Column Space의 경우를 강조하여 Column Rank라고도 부르는 경우가 있으나,

동일한 Matrix에 대해 이 둘은 같기 때문에 그냥 Rank라고 지칭하는게 일반적임.



$m \times n$ Matrix $A$에서 다음이 성립.



$$ \text{Column Rank}(A) \le n \\ \text{Row Rank}(A) \le n \\ \text{Rank}(A) \le \text{min}(m,n)$$


Important Properties of Rank

  • $\text{Rank}(A^\top) = \text{Rank}(A)$ : Row Rank와 Column Rank가 같음을 기억.
  • $\text{Rank}(A_{m \times n}B_{n \times q})=\text{min}(\text{Rank}(A_{m \times n}),\text{Rank}(B_{n \times q})) \le \text{min}(m,n,q)$ : SfM에서 Observation Matrix에서 사용되는 성질.
  • $\text{Rank}(A^\top A) = \text{Rank}(A A^\top) = \text{Rank} (A^\top) = \text{Rank}(A)$
  • $A_{m\times m}$ is not singular iff $\text{Rank}(A_{m \times m})=m$: 이 경우 $A$ is a Full Rank matrix.



SfM (Structure from Motion): 여러시점의 카메라의 이미지를 이용하여 3D 구조나 카메라의 모션을 복원하는 기술을 가리킴.


Example 3 :

Determine the rank of the matrix

$$
A \sim \begin{bmatrix}2 & 5 & -3 & -4 & 8 \\ 0 & -3 & 2 & 5 & -7 \\
0 & -6 & 4 & 14 & -20 \\ 0 & -9 & 6 & 5 & -6\end{bmatrix}
$$

  • Solution
    • Reduce $A$ to echelon form.
    • The matrix $A$ has 3 pivot columns, so rank $A$ = 3.

Theorem 14 : Rank Theorem

If a matrix $A$ has $n$ columns, then rank $A$ + dim $\text{Nul }A = n$.


2024.07.08 - [.../Linear Algebra] - [LA] Null Space



[LA] Null Space

Null Space는 주로 matrix 에 관련된 맥락에서 사용되며,Linear Transform 의 맥락에서는 Kernel 이라고 불림.Definition : Null SpaceThe null space of an $m \times n$ matrix $A$, written as Nul$(A)$, is the set of all solutions of the ho

dsaint31.tistory.com


Reference

Linear Algebra and Its Applications, 5th ed., David C. Lay: Chapter 4.6 Rank

https://www.google.co.kr/books/edition/Linear_Algebra_and_Its_Applications_Fift/lZ4mzgEACAAJ?hl=ko
