[SS] Convolution Op.에서 교환법칙 증명.

2023. 8. 21. 23:54·.../Signals and Systems
728x90
728x90

$$\begin{aligned}y(t)&=x(t)*h(t)\\&=\int^\infty_{-\infty}x(\tau)h(t-\tau)d\tau \\ &=- \int^{-\infty}_\infty x(t-l)h(l) dl \quad\quad \leftarrow l=t-\tau \\ &=- \int^{-\infty}_\infty h(l) x(t-l)dl \\&=\int^{\infty}_{-\infty} h(l) x(t-l)dl\\&=\int^{\infty}_{-\infty} h(l) x(t-l)dl \quad\quad \leftarrow l\text{을 }\tau\text{로 표기 변경} \\ &=\int^{\infty}_{-\infty} h(\tau) x(t-\tau)d\tau \\&=h(t)*x(t)\end{aligned}$$

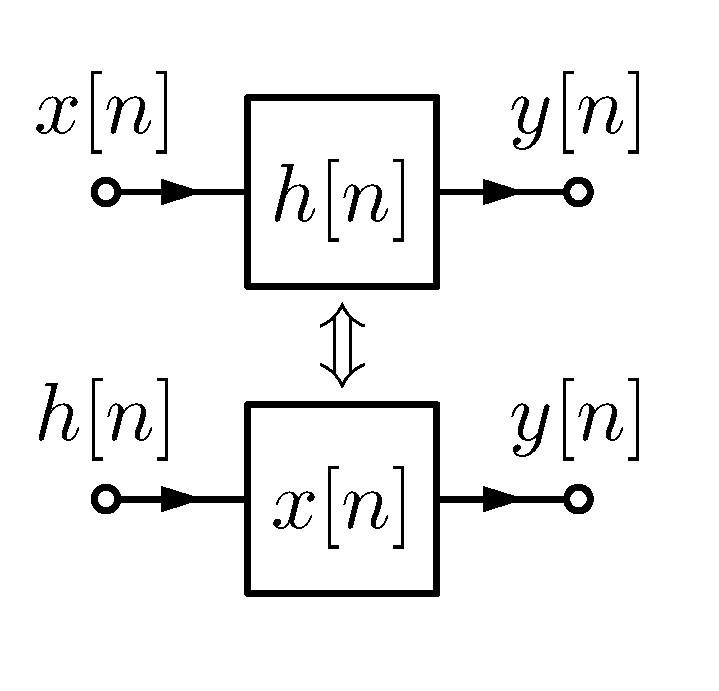

input function과 impulse response를 바꾸어서
처리해도 같은 출력을 구할 수 있음을 유의할 것.
