Image Processing과 Computer Vision(CV)은
상당 부분 겹쳐있으며, 명확하게 구분하기 어려운 분야들임.



이 두 분야는 연속선상에 있으며, 상당히 경계가 모호함.



공통적으로 두 분야 모두

  • linear algebra, probability, statistics 등의 수학적 지식에 익숙할수록 깊이 있는 이해와 응용이 가능하며
  • 이론적 개념을 실제로 구현하고 적용하는 것이 필수적이라,
  • MATLAB, Python, C, C++ 등의 프로그래밍 언어를 다룰 수 있는 능력을 요구함.
프로그래밍 기술은 알고리즘을 구현하고, 실험하며, 결과를 시각화하는 데 핵심적인 역할을 함.



이러한 공통점과 모호한 경계에도 불구하고,
Image Processing, Image Analysis, 그리고 Computer Vision은
각각 고유한 특징과 목표를 좀 더 명확하게 분리해서 이해하고 있을 만한 가치가 있음.



Rafael C. Gonzalez 의 Digital Image Processing (4th ed.) 의 1장의 내용대로

  • 이들 분야를 continuum(연속체)로 간주하고,
  • 저수준에서 고수준 처리로 이어지는 형태로 이해하는 것이 가장 적절하다고 생각됨.



아래 내용은 이를 정리한 것임.


1. Digital Image Processing:

  • definition: 디지털 컴퓨터를 사용하여 digital images를 처리하는 분야.
    • 전통적인 Digital image (raster graphics = bitmaps):
      • 2차원 함수 f(x,y)로 표현되며,
      • x와 y는 spatial coordinates,
      • f는 해당 좌표에서의 intensity 또는 gray level, or vector(3-4개의 요소)을 나타냄.
    • Vector Graphics
      • 수학적 공식과 기하학적 도형으로 image를 표현.
      • 점, 선, 곡선, 다각형 등의 수학적 객체들로 구성하고 text형태의 명령어들의 리스트로 이미지 구성.
      • 예: SVG, AI, EPS, PDF
      • 확대해도 화질 손실 없음
    • 넓은 의미의 digital image
      • 디지털 형태로 저장되고 처리되는 모든 이미지
      • 실제 많은 현대 시스템에서는 vector graphics를 최종 출력 시 rasterization하여 화면에 표시하며
      • 일부 이미지 처리에서는 raster graphics 와 vector graphics를 함께 사용하기도 함.
  • 범위:
    • 입력과 출력이 모두 이미지인 low-level processing 에서
    • 이미지에서 attributes를 추출하는 mid-level processing 을 거쳐
    • Individual object recognition 까지 포함될 수 있음(단, 상대적으로 낮은 복잡도의 경우를 가리키는 경우가 많음.)
  • 주요 기술:
    • Noise reduction, contrast enhancement, image sharpening 등의 preprocessing
    • 다음은 CV나 Image Analysis로 분류되기도 함:
      • Detection, Segmentation (이미지를 regions 또는 objects로 분할)
      • Object description 및 classification

https://ds31x.blogspot.com/2023/09/dip-digital-image-processing.html?q=CV



[DIP] Digital Image Processing 이란?



ds31x.blogspot.com


2. Image Analysis:

  • definition: Digital Image Processing과 Computer Vision 사이의 중간 영역.
  • 특징:
    • 입력은 일반적으로 images지만, 출력은 이미지에서 추출된 attributes or symbols 인 경우가 많음.
    • 예: Edges, contours, identity of individual objects
  • 주요 기술:
    • Object segmentation 및 description
    • Feature extraction
    • Pattern recognition

3. Computer Vision:

  • 목표: 컴퓨터를 사용하여 human vision을 emulate(모방)하는 것.
  • 특징:
    • Learning ability 가 강조됨.
    • 시각적 입력을 바탕으로 inference(추론)하고 actions을 취하는 능력
  • 인간의 지능을 모방하는 것을 목표로 하는 Artificial Intelligence (AI)의 한 분야임.

Computer Vision is

  • Automating Human Visual Processes
    • 시각 정보를 이용하는 시스템의 자동화 (가장 본질적인 computer vision)
  • An Information Processing Task
    • computer vision은 일종의 정보 처리라고 볼 수 있음
  • Inverting Image Formation
    • Image가 형성되는 물리적 과정을 역으로 추론하는 것이 computer vision
  • Inverting Graphics
    • Computer Graphics는 scene 에서 image로 변환.
    • Vision은 image에서 scene으로의 변환.

Computer Vision이란 인간의 시각 과정을 자동화하는 것으로, 이를 정보 처리 문제로 접근하며, 영상 형성과정 또는 그래픽스 과정을 역으로 추론하는 문제로 이해할 수 있음.

2025.06.22 - [Programming/DIP] - [CV] Scene 과 Image: Computer Graphics 와 Computer Vision



[CV] Scene 과 Image: Computer Graphics 와 Computer Vision

1. Scene 의 세부 종류와 Image:1-1. Physical Scene (물리적 장면): 현실 세계에 존재하는 3차원 구조로, 광원, 물체, 표면 재질 등이 실제로 존재하는 공간우리가 카메라로 촬영하는 실제 세계를 의미함.1-

dsaint31.tistory.com


4. 결론

이 세 영역은 continuum을 형성하며, 다음과 같이 구분할 수 있음:

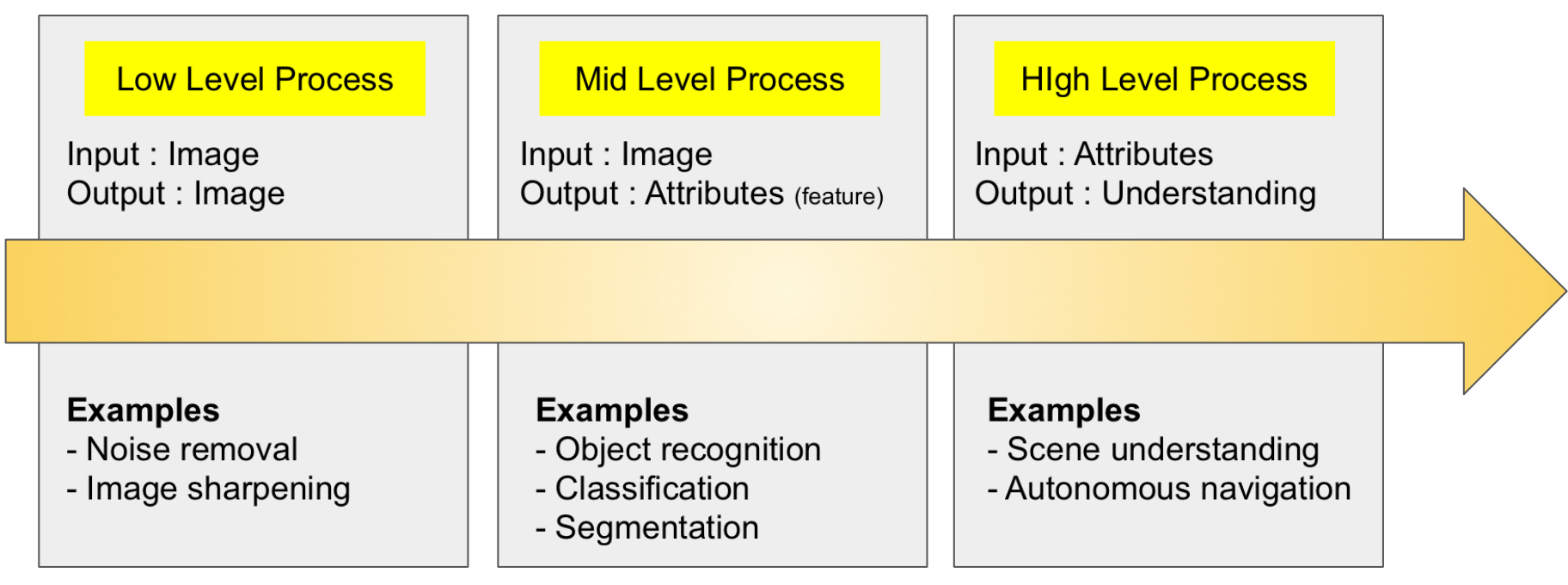

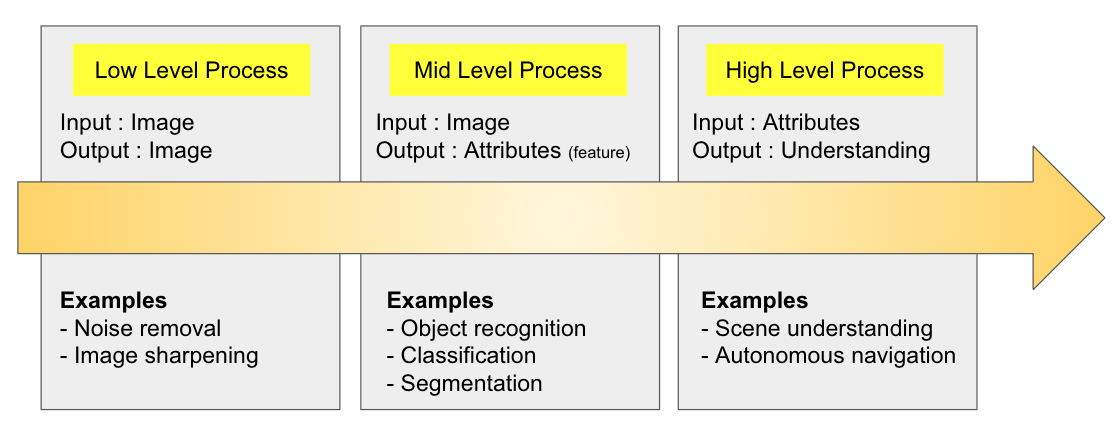

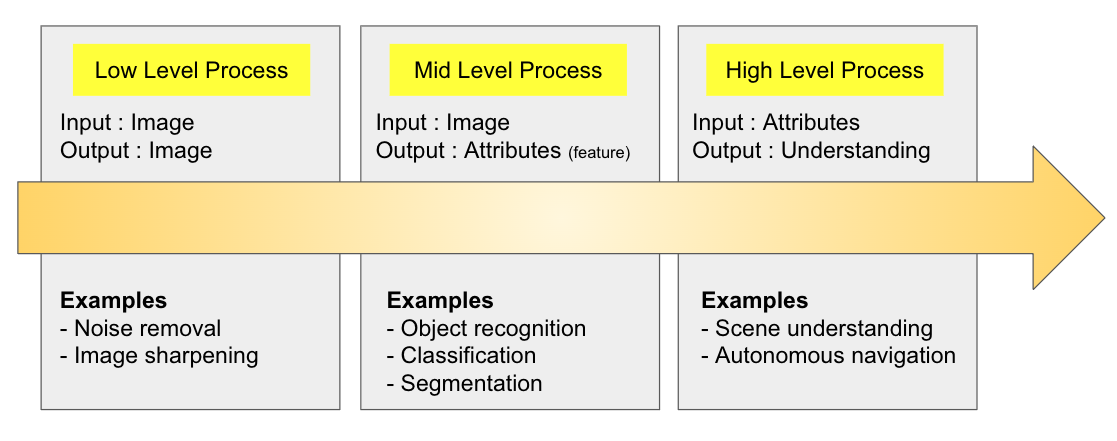

The continuum from image processing to computer vision

  1. Low-level processes:
    • Noise reduction, contrast enhancement, image sharpening 등
    • 입력과 출력 모두 images 인 경우가 많으나 항상 그런 것은 아님 (e.g. 특정 영역의 평균값 구하기 )
  2. Mid-level processes:
    • Segmentation, object description, classification
    • 입력은 images, 출력은 이미지에서 추출된 attributes (예: edges, contours, identity of individual objects)
  3. High-level processes:
    • 인식된 objects의 ensemble에 대한 "making sense"(=understanding)
    • Human vision과 관련된 cognitive functions 수행

쉽게 생각해서 위의 continuum에서 image processing과 image analysis의 겹치는 영역은

특정 이미지 내 individual regions 또는 objects를 인식(recognition)하는 task라고 할 수 있음.

복잡도에 따라 이는 CV에 속하기도 함.


5. Example



예를 들어, automated analysis of text 분야에서:

  • DIP:
    • image에서 text 영역 sub-image acquisition,
    • 해당 image에 대한 preprocessing,
    • individual character extraction (~segmentation),
    • 컴퓨터 처리에 적합한 형태로 character description  구하기 : feature vector 형태
    • individual character recognition
  • 텍스트의 내용(content)의 "이해"는 복잡도에 따라,
    • image analysis 또는
    • computer vision의 영역에 속함.
